New

ECO FLUSH SET

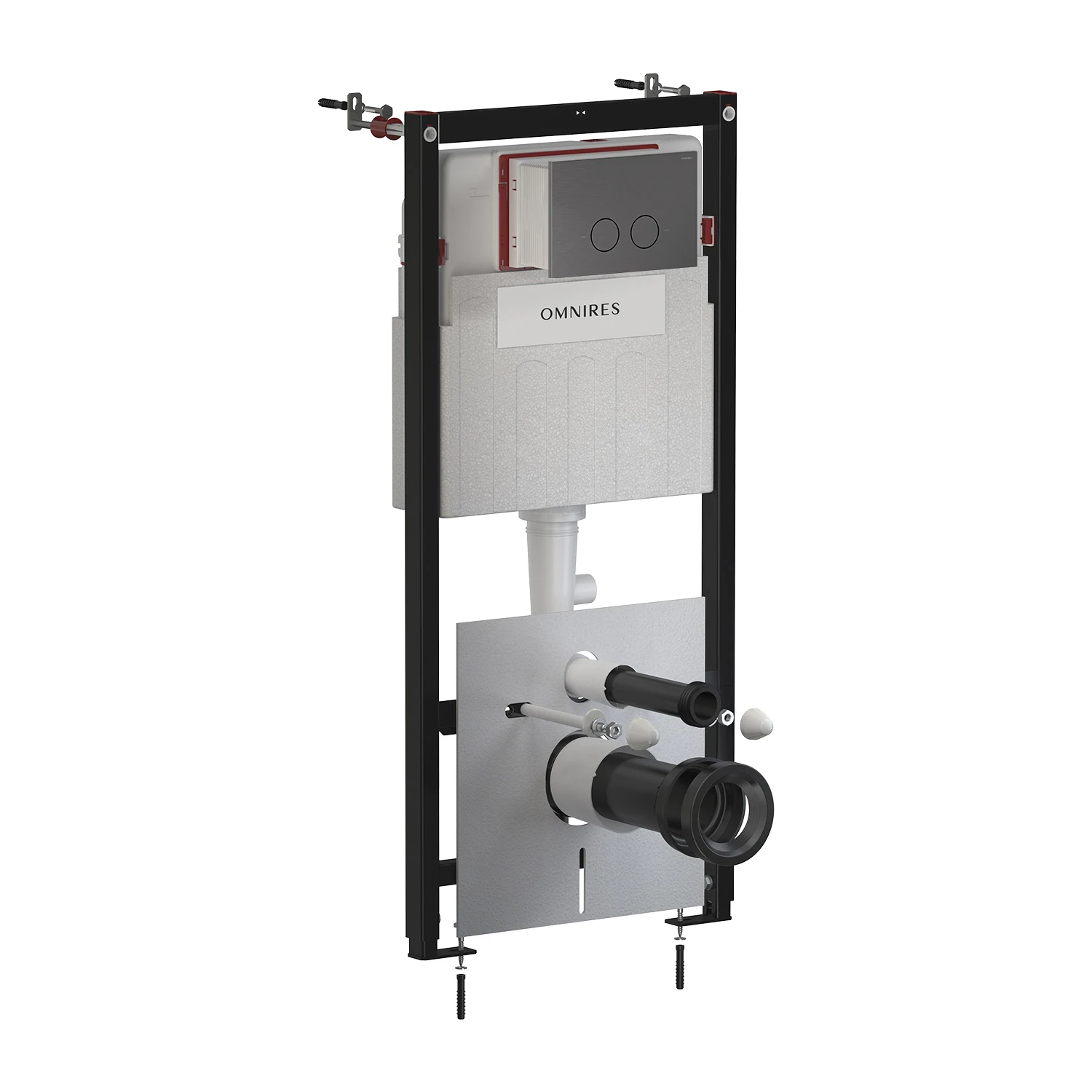

STRONGFRAME concealed frame for a wall-mounted toilet, with ECO flushing + STEEL-R45 stainless steel flush plate

Code: STFWCECO1R45-RAT

ECO FLUSH SET  |  STRONGFRAME concealed frame for a wall-mounted toilet, with ECO flushing + STEEL-R45 stainless steel flush plate

Finish: brushed anthracite (AT)

The set comprising the concealed OMNIRES STRONGFRAME system and the OMNIRES STEEL-R45 flush plate is designed for bathroom interiors where durability, precision craftsmanship and refined aesthetics are essential. The one-piece concealed cistern ensures complete leak-tightness, while the integrated insulation reduces condensation, dampens noise, and absorbs vibrations, providing a high level of comfort and discretion during everyday use.

Thanks to precise adjustment options, the system enables efficient water saving – from as little as 2 litres on a small flush or 4 litres on a large flush – without compromising performance.

The OMNIRES STEEL-R45 dual flush plate combines meticulous detailing, durable materials, and exceptional everyday comfort of use. Made of high-quality stainless steel, it offers outstanding resistance to impact, pressure and cleaning agents. Its carefully finished, pleasant-to-the-touch surface retains its elegant appearance and performance over time. The contemporary design integrates seamlessly with the wall surface, while the softly rounded buttons and perfectly balanced proportions ensure effortless operation. Intuitive markings allow easy selection of the appropriate flush volume, supporting water efficiency and comfort with every use.

The flush plate comes in anthracite – a modern finishing in a deep metallic shade, with a satin, brushed surface. The product is coated using the advanced PVD technology.

Eco Water
Thanks to the innovative flushing technology, the water consumption is minimised.

Pvd
The flush plate is coated using advanced PVD technology, which guarantees the highest possible durability and facilitates cleaning.

5-year warranty
The product has a 5-year warranty. Details of warranty terms

  • STRONGFRAME concealed frame for drywall installation; height: 112 cm, width: 51 cm, frame depth: 12.5 cm, installation depth: 12.5-25 cm
  • can be installed in front of a wall or inside a stud wall
  • for a wall-mounted toilet bowl with a fixing bolt distance of 180 mm or 230 mm
  • adjustable anchor feet with a locking system and a range of 0-20 cm
  • sliding rail holder for the waste connector can be set to eight positions between 0 and 9.3 cm
  • G ½ water connection with integrated G 3⁄8 angle valve
  • water connection can either be at the back or at the top
  • can be connected to external ventilation
  • sound insulation mat included in the set
  • concealed system with a 9-litre cistern capacity and polystyrene insulation to prevent condensation on the tank surface and to dampen vibrations transmitted from the tank to the building structure
  • flushing volume factory settings: 2 litres / 4 litres
  • flushing water can be adjusted using the flushing valve: small flush 2-4 litres / large flush 3-6 litres
  • recommended for toilet bowls with SILENT POWER™ technology

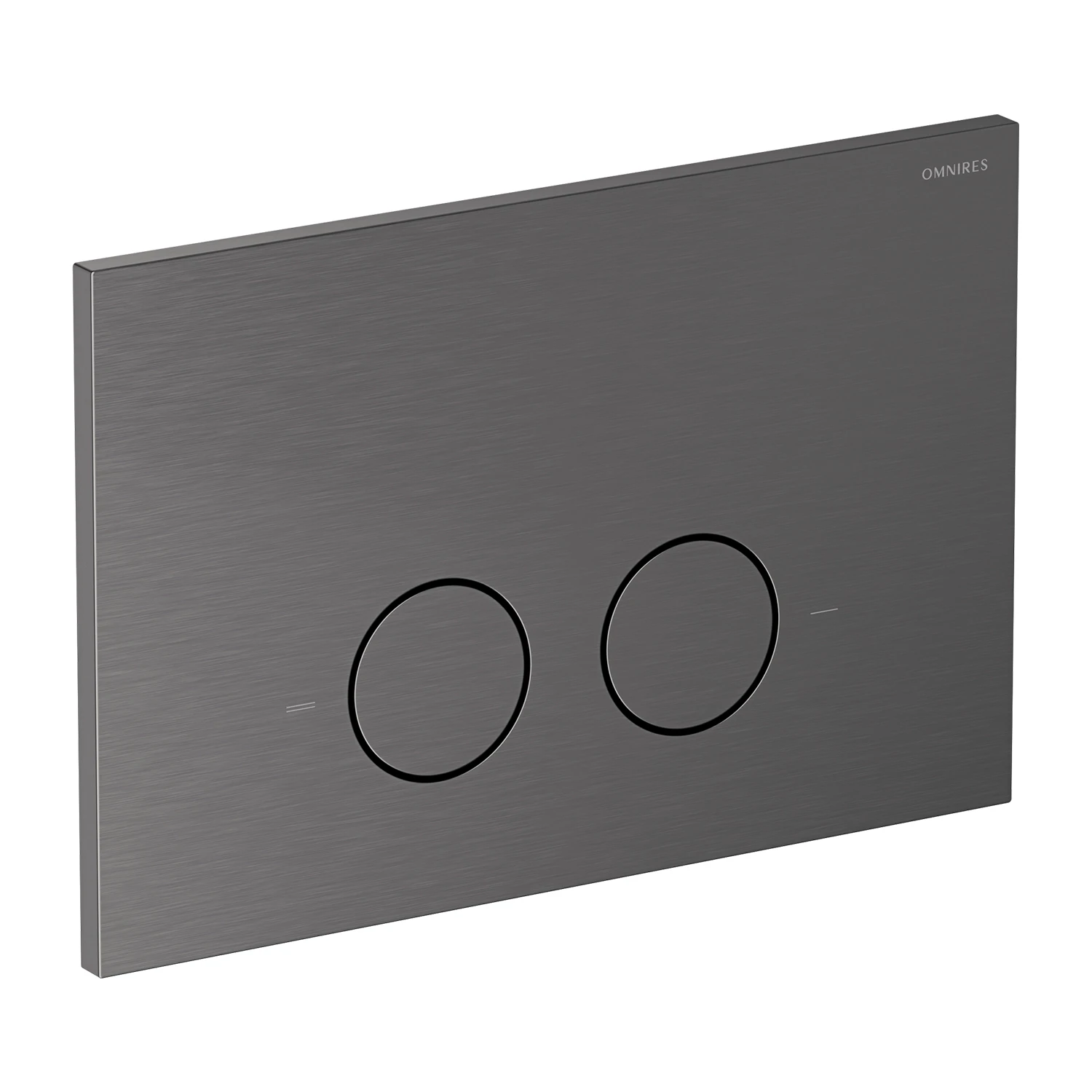

  • dual flush plate STEEL-R45 made of stainless steel; dimensions: 24.5 x 16.5 cm

Eco Water
Thanks to the innovative flushing technology, the water consumption is minimised.

Pvd
The flush plate is coated using advanced PVD technology, which guarantees the highest possible durability and facilitates cleaning.

5-year warranty
The product has a 5-year warranty. Details of warranty terms

Product data sheet
PDF
0.90 MB
Technical drawing
pdf
0.28 MB
Installation and maintenance instructions
pdf
9.27 MB
Product 3D files (.OBJ, .3DS, .DWG, .FBX)
ZIP
10.00 MB
